Engine Actuators
It’s all in the mix
The valve angle is monitored by throttle electronics, which remain in constant communication with the engine management system.
Overview
Our engine actuator products maximise the potential of modern engine management, offering consistency and good performance. Before fuel can release its energy, it must be combined with air. The resulting mix can then be ignited by using a carefully timed high-voltage spark.
Electromotive Throttle Valves
The valve angle is monitored by throttle electronics, which remain in constant communication with the engine management system. The resulting data is compared in real-time. The optimum throttle position is calculated by the engine management system with regard to both fuel economy and emissions. The information is then fed back to the throttle electronics, which adjust the throttle angle accordingly.
Use the Online Catalogue service to get more details about this product which can be installed in your vehicle (passenger car).

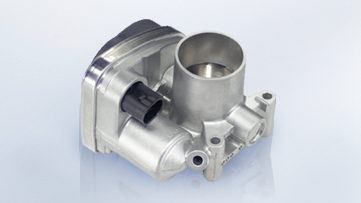

Electronic Throttle Valves
The engine management system compares the position of the accelerator with other on-board sensor data. The optimum throttle angle is then calculated based on current engine conditions. This data is sent to the throttle and the valve is positioned accordingly, i.e. the throttle is controlled solely by means of an electronic signal from the engine management system. Key benefits include improved efficiency under all load conditions.
Use the Online Catalogue service to get more details about this product which can be installed in your vehicle (passenger car).

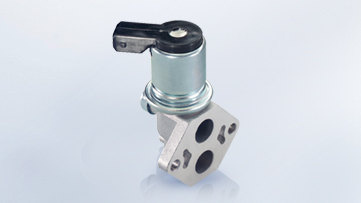

Idle-Speed Controllers
Idle-speed controllers provide dynamic adjustment of airflow in the throttle bypass valve, ensuring optimal idling at all times. Working in conjunction with the corresponding sensors and an electronic control unit, these devices provide a rapid response to any variation in idle speed.
Use the Online Catalogue service to get more details about this product which can be installed in your vehicle (passenger car).

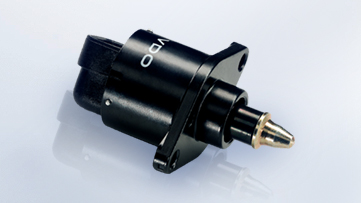

Digital Linear Actuators
Digital linear actuators provide incremental adjustment of airflow in the throttle bypass valve, ensuring optimal idling at all times. These devices provide a quick response to any variation in idle speed, working in conjunction with the corresponding sensors.
Use the Online Catalogue service to get more details about this product which can be installed in your vehicle (passenger car).

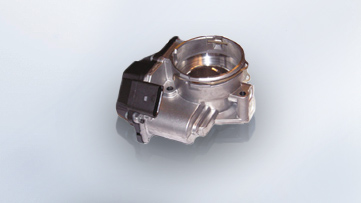

Air control valves
In the intake system of diesel engines, our ACVs (with or without integrated control electronics) use an electric motor to restrict the intake air so that a precisely controlled exhaust gas recirculation system is possible (stricter exhaust standards) and to remedy the annoying shake that occurs when shutting down diesel engines.

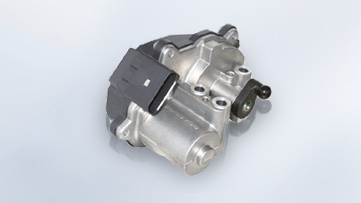

Air flap actuators
The electric actuator with integrated position sensor and optional integrated electronics allows intake manifold throttles or turbo charge guide vanes for example to be continuously adjusted. Its more precise control means that it is taking the place of standard pneumatic drives which can no longer satisfy the more stringent requirements.

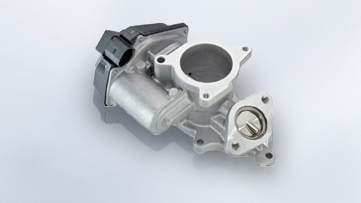

Exhaust gas recirculation valves
Compared with traditional valves, the electrically actu-ated exhaust recirculation valves enable even more accurate control of the exhaust recirculation rates in Diesel engines and directinjection gasoline engines. This way they make an important contribution towards meeting ever stricter exhaust emission standards.

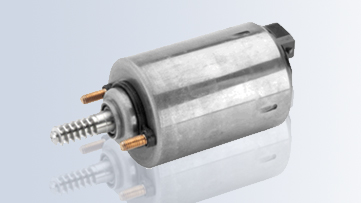

Variable Lift Control Motors
VDO Sensors and VDO Motors e.g. for the Valvetronic System
With help of the Valvetronic System the vehicle power is more direct and increased. On the other hand the consumption is reduced by up to 10% within the gasoline engine. Within this system the airflow is controlled by the Variable Valve Lift and replaces the Throttle Valve. Nevertheless, a Throttle Valve is still mounted and responsible for other functionalities like emergency operation.
The high-precision VDO Motors adjust continuously the eccentric shaft of the system. Via the eccentric shaft and the cam shaft driven rocker arm the intake valves are variably adjusted. The VDO Sensors exactly control the adjusted angle of the eccentric shaft and report this value to the enginemanagement.
Benefits and Features
- OE-Quality with respect to accurate fit, functionality, service life, reliability and safety
- Many years of experience as an original equipment manufacturer
- Closed loop control via separate position sensor and position control electronics.
- Reliable and proved concept in serial production engines.
- Passenger cars
- Gasoline engines
Technical Data
- Fulfillment of OE specification
Use the Online Catalogue service to get more details about this product which can be installed in your vehicle (passenger car).
See also our Eccentric Shaft Sensors
