Platform Single Instruments

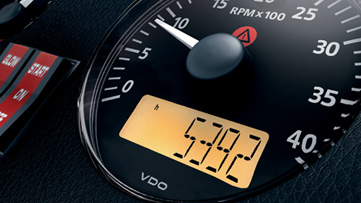

Our Viewline series.
Overview

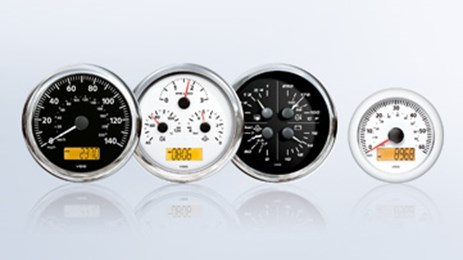

World Wide Gauges is a standardised instrument platform for special vehicles and stationary machinery. With modular solutions in three housing variants and in two different illuminations (front or back light) solution. Based on this instrument platform very cost effective customised solutions are available (dial design).
World Wide Gauges Cockpit International
- Panel installation
- LC-display for speedo/tacho gauges
- Front light technology
Benefits and Features
- Analogue platform product
- 52, 80 and 100mm gauges available
- Different fixation concepts (nut, studs and bracket)
- Mineral glass lens
- Metal bezel
Technical Data
- Operating voltage 12 or 24 V DC
- Operating temperature -30°C to +85°C
- IP 64 protection class (front)
- Front light
World Wide Gauges Cockpit Vision
- Panel installation
- LC-display for speedo/tacho gauges
- Full backlight technology
Benefits and Features
- Analogue platform product
- 52, 80 and 100mm gauges available
- Different fixation concepts (nut, studs and bracket)
- Mineral glass lens
- Metal bezel
Technical Data
- Operating voltage 12 or 24 V DC
- Operating temperature -30°C to +85°C
- IP 64 protection class (front)
- Back light
Single Viu
The round-shaped instruments of the SingleViu product family are replacing the three existing families: WWG, Viewline and CANcockpit. SingleViu covers all applications of previous instruments and provides a consistent and flexible solution of cutting-edge technology. The SingleViu instruments have a dual-input, both for digital transmission with CAN bus and analog for customary sensors.
The individual instruments for temperature, tank, pressure, voltage and current display are available in a 52 mm diameter. Travelling speed and engine speed indicators are available in diameters of 80, 85 or 100 mm. The devices with 80/85 and 100 mm diameter have an internal sensor and an LCD display that can show the driver different data in “rolling mode”.
For original equipment, retrofit or to replace existing instruments vehicle manufacturers can choose between a total of 74 variants.
All features and benefits at a glance:
- CAN and analog input
- Highly resistant thanks to mineral glass, high protection class IP67 and flame-resistant housing
- Double glazing system prevents fogging
- Configurability via PC tool and button
- Design individually adaptable to customer requirements
Regarding the spare parts market, SingleViu instruments can be connected to the existing wiring harness via an adapter. The SingleViu product line is very versatile and can easily adapt to a great number of vehicles, such as agricultural, construction, commercial and motorcycles.
